DUR1040CT Datasheet - Littelfuse

DUR1040CT Ultrafast Recovery Rectifier

Littelfuse DUR series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, lowleakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency pow.

DUR1040CT Features

* Ultra-fast switching

* Low reverse leakage current

* High surge current capability

* Low forward voltage drop

* Common Cathode configuration in TO-220AB package

* Pb-free E3 means 2nd level interconnect is Pbfree and the terminal finish materi

DUR1040CT-Littelfuse.pdf

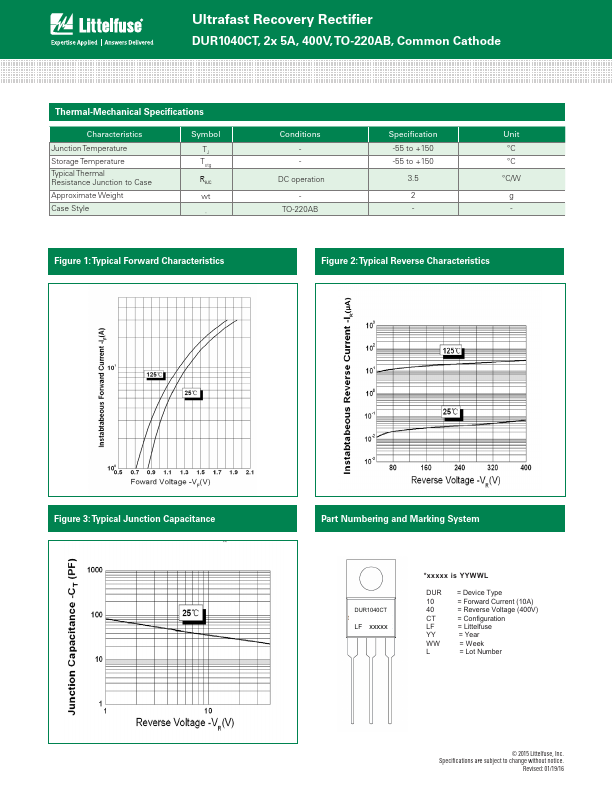

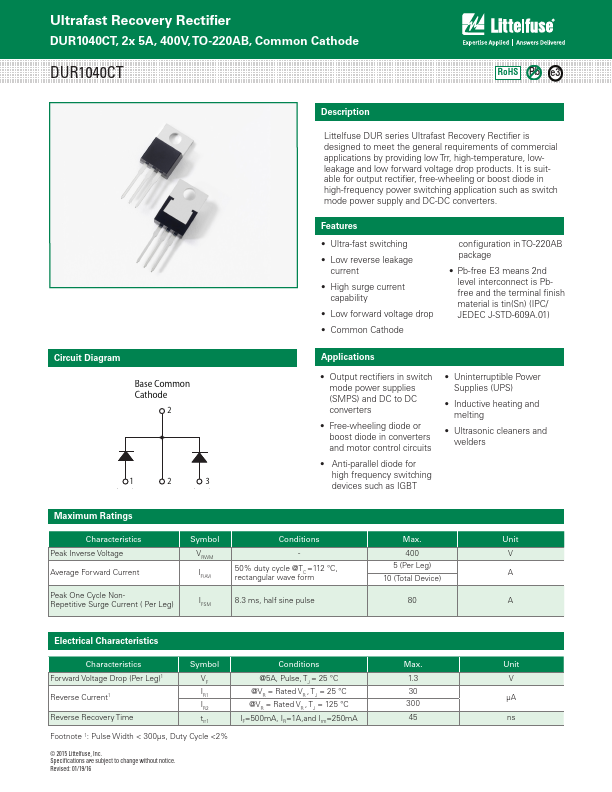

Preview of DUR1040CT PDF
DUR1040CT Datasheet Preview Page 2 DUR1040CT Datasheet Preview Page 3

Datasheet Details

Part number:

DUR1040CT

Manufacturer:

Littelfuse ↗

File Size:

572.26 KB

Description:

Ultrafast recovery rectifier.
