ITV4030L1222, ITV4030 Datasheet - Littelfuse

ITV4030L1222 three terminals surface mountable battery protector

ITV4030 Series is a three terminals surface mountable battery protector which is designed to against both overcurrent and overvoltage (overcharging). A fuse element is embedded to cut off the circuit when overcurrent issue happens. A heater is also directly embedded under the fuse element, it will g.

ITV4030L1222 Features

* Halogen Free

* Surface Mount

* Fast response

* Protection for both overcurrent and overcharging Agency Approvals Agency Agency File Number Ampere Range E10480 TA 50461285 12 A, 15 A, 22 A 12 A, 15 A, 22 A Thermal Derating Characteristics Ambient Operating Temperature 2

ITV4030-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: ITV4030L1222, ITV4030. Please refer to the document for exact specifications by model.

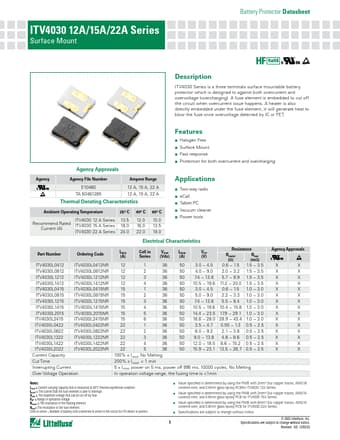

ITV4030L1222 Datasheet Preview Page 2 ITV4030L1222 Datasheet Preview Page 3

Datasheet Details

Part number:

ITV4030L1222, ITV4030

Manufacturer:

Littelfuse ↗

File Size:

1.05 MB

Description:

Three terminals surface mountable battery protector.

Note:

This datasheet PDF includes multiple part numbers: ITV4030L1222, ITV4030.
Please refer to the document for exact specifications by model.
