ITV4030L1412

three terminals surface mountable battery protector

ITV4030L1412 Features

* Halogen Free

* Surface Mount

* Fast response

* Protection for both overcurrent and overcharging Agency Approvals Agency Agency File Number Ampere Range E10480 TA 50461285 12 A, 15 A, 22 A 12 A, 15 A, 22 A Thermal Derating Characteristics Ambient Operating Temperature 2

ITV4030L1412 General Description

ITV4030 Series is a three terminals surface mountable battery protector which is designed to against both overcurrent and overvoltage (overcharging). A fuse element is embedded to cut off the circuit when overcurrent issue happens. A heater is also directly embedded under the fuse element, it will g.

ITV4030L1412 Datasheet (1.05 MB)

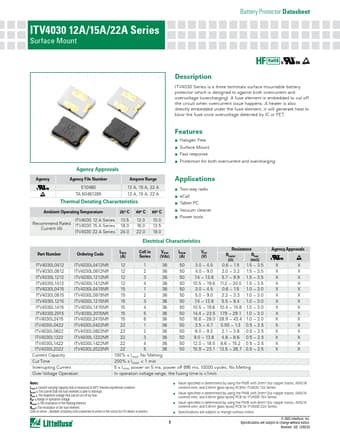

Preview of ITV4030L1412 PDF

Datasheet Details

Part number:

ITV4030L1412

Manufacturer:

Littelfuse ↗

File Size:

1.05 MB

Description:

Three terminals surface mountable battery protector.
