K2500SHU Datasheet, Sidacs, Littelfuse

K2500SHU Features

  • Sidacs
  • A C circuit oriented
  • T riggering Voltage of 190 to 260V
  • 280A Pulse current capability
  • RoHS compliant
  • Unidirectional Applic

PDF File Details

Part number:

K2500SHU

Manufacturer:

Littelfuse ↗

File Size:

1.07MB

Download:

📄 Datasheet

Description:

High energy unidirectional sidacs. The new K2xx0yHU is a higher energy SIDAC switch for gas ignition applications requiring higher current pulse current especially at l

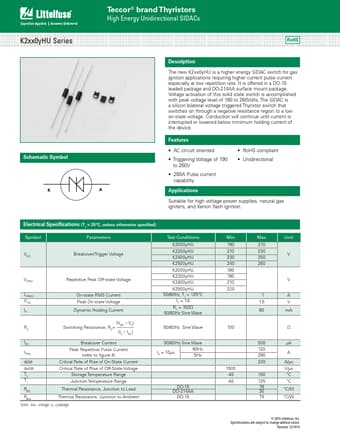

Datasheet Preview: K2500SHU 📥 Download PDF (1.07MB)
Page 2 of K2500SHU Page 3 of K2500SHU

K2500SHU Application

  • Applications requiring higher current pulse current especially at low repetition rate. It is offered in a DO-15 leaded package and DO-214AA surface
