K2501G

Multipulse SIDACs

K2501G Features

* A C circuit oriented

* T riggering Voltage of 200 to 380V

*  R o H S Compliant Electrical Specifications Symbol Parameters VBO Breakover/Trigger Voltage VDRM Repetitive Peak Off-State Voltage IT(RMS) IH RS tCOMM IBO ITSM di/dt dv/dt TS TJ RθJL On-State RMS Cu

K2501G General Description

The Multipulse™ SIDAC is a voltage switch used in MetalHalide lamp ignition circuits as well as High Pressure Sodium lamp ignition circuits for outdoor street and area lighting. This robust solid state switch is designed to handle lamp igniter applications requiring operation at ambient temperature.

K2501G Datasheet (683.29 KB)

Preview of K2501G PDF

Datasheet Details

Part number:

K2501G

Manufacturer:

Littelfuse ↗

File Size:

683.29 KB

Description:

Multipulse sidacs.

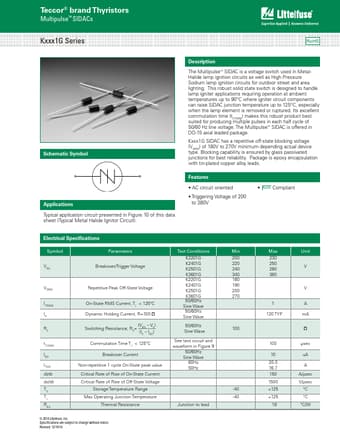

Teccor® brand Thyristors Multipulse™ SIDACs Kxxx1G Series RoHS Schematic Symbol Applications Typical application circuit presented in Figure 10 of t.
