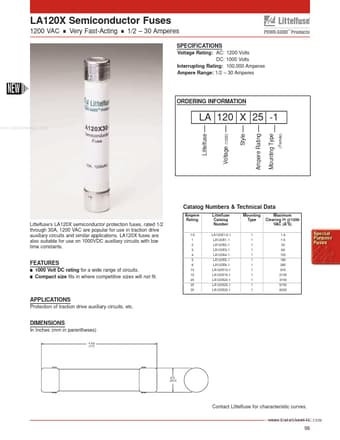

LA120X Datasheet - Littelfuse

LA120X Semiconductor Fuses

LA120X Semiconductor Fuses 1200 VAC I Very Fast-Acting I 1/2 30 Amperes SPECIFICATIONS Voltage Rating: AC: 1200 Volts DC: 1000 Volts Interrupting Rating: 100,000 Amperes Ampere Range: 1/2 30 Amperes NEW ORDERING INFORMATION LA 120 X 25 -1 www.DataSheet4U.com Voltage (1200) Ampere Rating Catalog Numbers & Technical Data Ampere Rating Littelfuse’s LA120X semiconductor protection fuses, rated 1/2 through 30A, 1200 VAC are popular for use in traction drive auxiliary circ.

LA120X Features

* I I 1000 Volt DC rating for a wide range of circuits. Compact size fits in where competitive sizes will not fit. 1/2 1 2 3 4 5 6 10 15 20 25 30 1 1 1 1 1 1 1 1 1 1 1 1 APPLICATIONS Protection of traction drive auxiliary circuits, etc. DIMENSIONS In Inches (mm in parentheses) 4 5/8 (117) .812 (

LA120X Datasheet (396.90 KB)
