LS1205EFD33, LS1205EVD33 Datasheet - Littelfuse

LS1205EFD33, LS1205EVD33, 5A eFuse

Protection IC Datasheet LS1205ExD33 Series 18V, 5A eFuse with Programmable Current Limit and Output Voltage Clamp RoHS Pb .
The LS1205E integrated load switch provides an easy circuit protection to power the system.

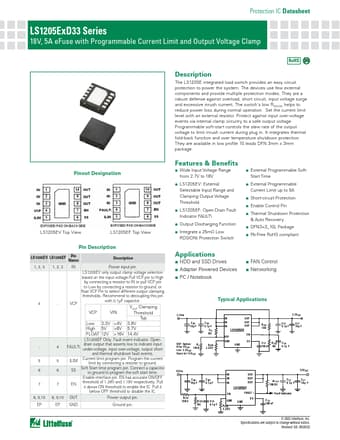

datasheet Preview Page 1 from Datasheet4u.com

LS1205EVD33-Littelfuse.pdf

LS1205EFD33 Datasheet Preview — This datasheet PDF includes multiple part numbers: LS1205EFD33, LS1205EVD33. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LS1205EFD33, LS1205EVD33

Manufacturer:

Littelfuse ↗

File Size:

1.05 MB

Description:

5A eFuse

Note:

This datasheet PDF includes multiple part numbers: LS1205EFD33, LS1205EVD33.
Please refer to the document for exact specifications by model.

Features

* & Benefits
* Wide Input Voltage Range from 2.7V to 18V
* LS1205EV: External Selectable Input Range and Clamping Output Voltage Threshold
* LS1205EF: Open Drain Fault Indicator FAULT
* Output Discharging Function
* Integrate a 25mΩ Low RDS(ON) Protection Switch
* External Pro

Applications

* HDD and SSD Drives
* Adapter Powered Devices
* PC / Notebook
* FAN Control
* Networking Typical Applications 3 .3 V IN C IN1 10μ F C IN2 0.1μ F RH NC VCP Op tion : R L H for 5 V OUT 100 K L for 3 .3 V OUT O pen for 12 V OUT R ILIM 2.2KΩ IN O UT IN O UT IN O UT LS1
