MCR25DG - Silicon Controlled Rectifiers

MCR25DG Description

MCR25DG, MCR25MG, MCR25NG Silicon Controlled Rectifiers Thyristor Datasheet Additional Information Resources Accessories Samples Pb .
Designed primarily for half-wave ac control applications, such as motor controls, heating controls, and power supplies; or wherever half. wave,.

MCR25DG Features

* Blocking Voltage to 800 Volts
* On
* State Current Rating of 25 Amperes RMS
* High Surge Current Capability
* 300 Amperes
* Rugged Economical TO
* 220AB Package
* Glass Passivated Junctions for Reliability and Uniformity
* Minimum and Maximum Values of

MCR25DG Applications

* such as motor controls, heating controls, and power supplies; or wherever half
* wave, silicon gate

📥 Download Datasheet

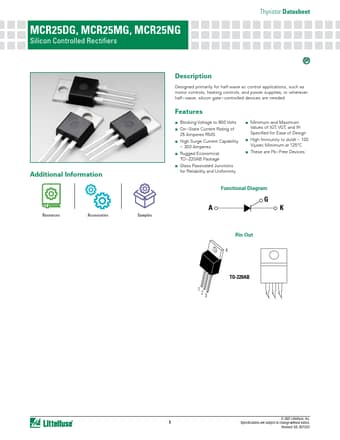

Preview of MCR25DG PDF
datasheet Preview Page 2 datasheet Preview Page 3
