MHS Multilayer High Speed Transient Voltage Surge Suppressor

DIMENSIONS IN MILLIMETERS Dependant on chip size to minimize rotation Dependant on chip size to minimize rotation Dependant on chip size to minimize rotation 8 ±0.2 3.5 ±0.05 1.75±0.1 2±0.05 2 ±0.1 4 ±0.1 1.55 ±0.05 0.61 0.10 Max PRODUCT IDENTIFYING LABEL EMBOSSED PAPER CARRIER E D0 P0 P2 T F B0.

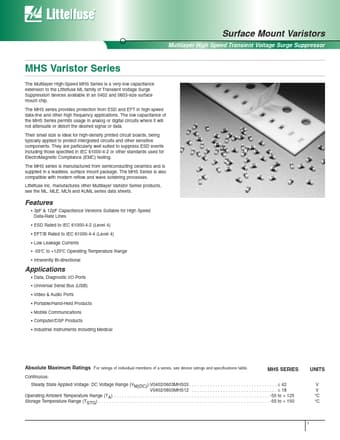

Surface Mount Varistors Multilayer High Speed Transient Voltage Surge Suppressor MHS Varistor Series The Multilayer High-Speed MHS Series is a very-low capacitance extension to the Littelfuse ML family of Transient Voltage Surge Suppression devices available in an 0402 and 0603-size surface mount chip. The MHS series provides protection from ESD and EFT in high-speed data-line and other high frequency applications. The low capacitance of the MHS Series permits usage in analog or digital circuit.

MHS Features

* 3pF & 12pF Capacitance Versions Suitable for High Speed Data-Rate Lines

* ESD Rated to IEC 61000-4-2 (Level 4)

* EFT/B Rated to IEC 61000-4-4 (Level 4)

* Low Leakage Currents

* -55oC to +125oC Operating Temperature Range

* Inherently Bi-directional
