MS0690J-DL1TE 90A AC Controller Module

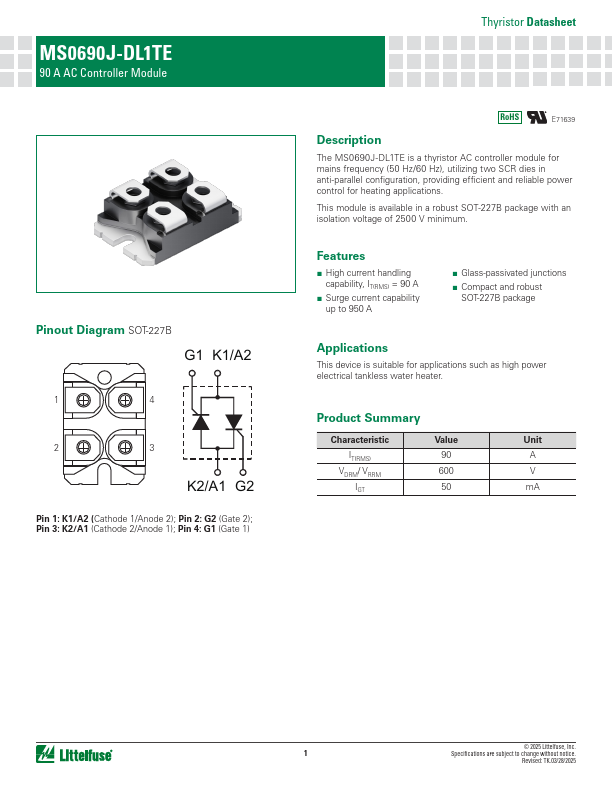

📥 Download Datasheet Datasheet Preview Page 1

Description

MS0690J-DL1TE 90 A AC Controller Module Pinout Diagram SOT-227B G1 K1/A2 1 4 2 3 K2/A1 G2 Pin 1: K1/A2 (Cathode 1/Anode 2); Pin 2: G2 (Gate 2); .
The MS0690J-DL1TE is a thyristor AC controller module for mains frequency (50 Hz/60 Hz), utilizing two SCR dies in anti-parallel configuration, provid.

📥 Download Datasheet

Preview of MS0690J-DL1TE PDF

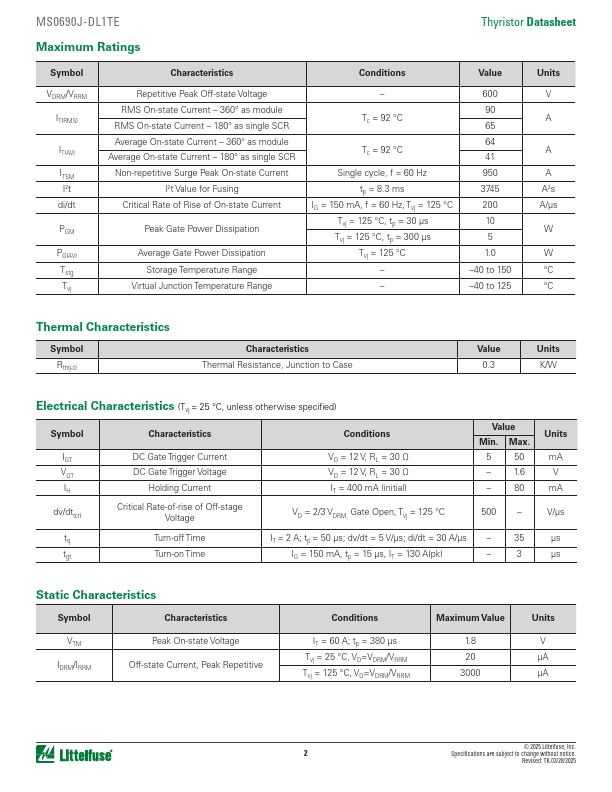

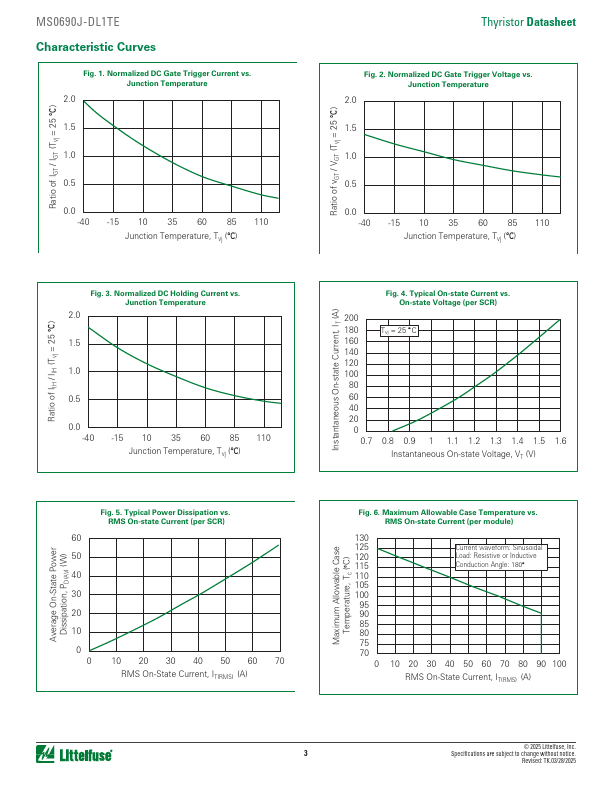

datasheet Preview Page 2 datasheet Preview Page 3

Features

* High current handling capability, IT(RMS) = 90 A
* Surge current capability up to 950 A
* Glass-passivated junctions
