P1701Q22CLRP - SIDACtor Protection Thyristors

Datasheet Summary

Description

Fixed Voltage Q2L Series are uni-directional SIDACtor® devices designed to protect SLICs (Subscriber Line Interface Circuit) from damaging overvoltage transients.

The series provides single line protection using a fixed voltage switching device for negative surges.

Features

  • and Benefits t Integrated diode for positive voltage surges t Low profile t Small footprint QFN Package t Low on-state voltage t Does not degrade with use t Fails short circuit when surged in excess of ratings Applicable Global Standards t TIA-968-A t TIA-968-B t ITU K.20/21/Enhanced Level t ITU K.20/21/Basic Level t GR 1089 Inter.

📥 Download Datasheet

Datasheet preview – P1701Q22CLRP

Datasheet Details

Part number P1701Q22CLRP
Manufacturer Littelfuse
File Size 155.57 KB
Description SIDACtor Protection Thyristors
Datasheet download datasheet P1701Q22CLRP Datasheet
Additional preview pages of the P1701Q22CLRP datasheet.

📁 Similar Datasheet

  • P1703BDG - N-Channel MOSFET (UNIKC)
  • P1703BDG - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Niko-Sem)
  • P170FZ6QNKA - Power MOSFET (Shindengen)
  • P171 - P171-Type PIN/Preamp (Agere Systems)
  • P171A016BAA - P171-Type PIN/Preamp (Agere Systems)
  • P171A016BAF - P171-Type PIN/Preamp (Agere Systems)
  • P171B014BAA - P171-Type PIN/Preamp (Agere Systems)
  • P171B014BAF - P171-Type PIN/Preamp (Agere Systems)
  • P171B046BAA - P171-Type PIN/Preamp (Agere Systems)
  • P171B046BAF - P171-Type PIN/Preamp (Agere Systems)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text

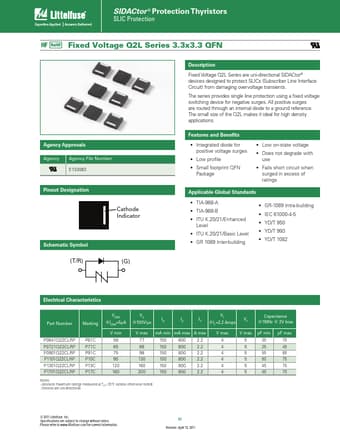

SIDACtor® Protection Thyristors SLIC Protection Fixed Voltage Q2L Series 3.3x3.3 QFN Agency Approvals Agency Agency File Number E133083 Pinout Designation Cathode Indicator Schematic Symbol (T/R) (G) Description Fixed Voltage Q2L Series are uni-directional SIDACtor® devices designed to protect SLICs (Subscriber Line Interface Circuit) from damaging overvoltage transients. The series provides single line protection using a fixed voltage switching device for negative surges. All positive surges are routed through an internal diode to a ground reference. The small size of the Q2L makes it ideal for high density applications.
