P1900MEL SIDACtor Protection Thyristors

Littelfuse

Description

SIDACtor® Protection Thyristors High Surge Current Protection 5kA Series - TO-218 Agency Approvals Agency Agency File Number E133083 Pinout Desig.
The 5kA Series are SIDACtor® devices designed to protect equipment located in high exposure environments from severe overvoltage transients.

📥 Download Datasheet

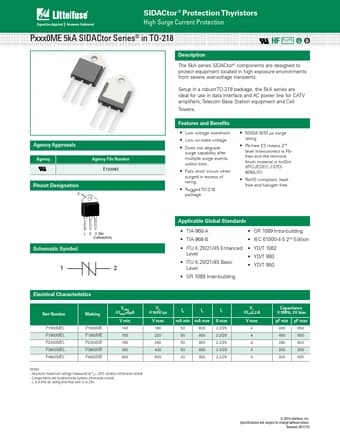

P1900MEL Datasheet Preview — Preview of P1900MEL PDF

Datasheet Specifications

Part number: P1900MEL
Manufacturer: Littelfuse ↗
File Size: 564.93 KB
Datasheet: P1900MEL-Littelfuse.pdf
Description: SIDACtor Protection Thyristors

Features

* and Beneﬁts t Low voltage overshoot t Low on-state voltage t Does not degrade with use t Fails short circuit when surged in excess of rating t Rugged TO-218 package t 5000A 8x20 μs surge rating Applicable Global Standards t TIA-968-A t TIA-968-B t ITU K.20/21 Enhanced Level t ITU K.20/2
