P3500S3NLRP Datasheet - Littelfuse

P3500S3NLRP Thyristors

The Pxxx0S3N Series DO-214AB thyristors are components designed to protect equipment located in hostile environments from overvoltage transients. The Pxxx0S3N Series protect exposed interfaces in industrial and ICT applications, such as RS-485 data interfaces or AC and DC power supplies. These compo.

P3500S3NLRP Features

* Low voltage overshoot

* Low on-state voltage

* Component properties do not degrade after multiple surge events within its limits

* Fails short circuit when surged in excess of ratings

* Fast response in microseconds

* 3000A 8/20 μs Surge Rating

* RoHS Compliant and Ha

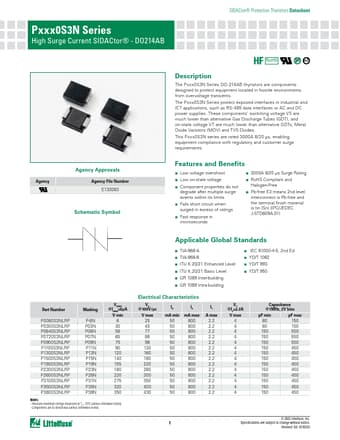

P3500S3NLRP Datasheet (498.56 KB)
