P6KE12A, P6KE6.8A, TVS Diodes

P6KE Series TVS Diodes Axial Leaded * 600W > P6KE series RoHS Pb e3 Bi-directional Uni-directional Agency Approvals Agency Agency File .
The P6KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient vo.

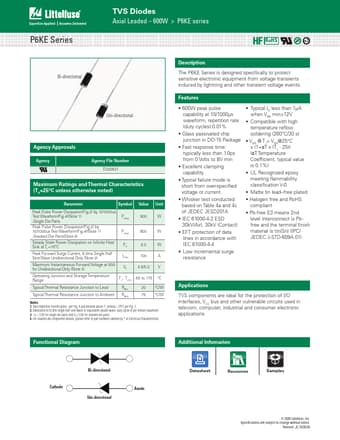

P6KE6.8A-Littelfuse.pdf

P6KE12A Datasheet Preview — This datasheet PDF includes multiple part numbers: P6KE12A, P6KE6.8A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P6KE12A, P6KE6.8A

Manufacturer:

Littelfuse ↗

File Size:

969.01 KB

Description:

TVS Diodes

Note:

This datasheet PDF includes multiple part numbers: P6KE12A, P6KE6.8A.
Please refer to the document for exact specifications by model.

Features

* 600W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
* Glass passivated chip junction in DO-15 Package
* Fast response time: typically less than 1.0ps from 0 Volts to BV min
* Excellent clamping capability
* Typical failure

Applications

* TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications. Functional Diagram Additional Infomarion Cathode Bi-directional Uni-directional Anode Datasheet Resources Samples
