Q4010LT, Q4004LT, Thyristors

Teccor® brand Thyristors 4 / 6 / 8 / 10 / 15 Amp Quadracs QxxxxLTx Series RoHS ® Agency Approval Agency ® Schematic Symbol Agency File Number L Pa.
The Quadrac is an internally triggered Triac designed for AC switching and phase control applications.

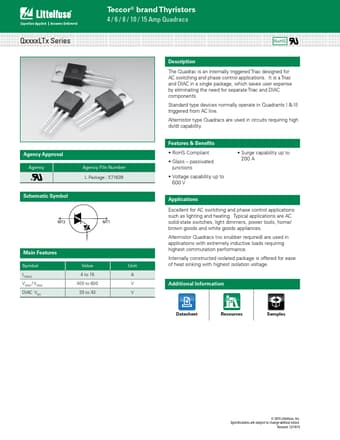

datasheet Preview Page 1 from Datasheet4u.com

Q4004LT-Littelfuse.pdf

Q4010LT Datasheet Preview — This datasheet PDF includes multiple part numbers: Q4010LT, Q4004LT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Q4010LT, Q4004LT

Manufacturer:

Littelfuse ↗

File Size:

445.79 KB

Description:

Thyristors

Note:

This datasheet PDF includes multiple part numbers: Q4010LT, Q4004LT.
Please refer to the document for exact specifications by model.

Applications

* It is a Triac and DIAC in a single package, which saves user expense by eliminating the need for separate Triac and DIAC components. Standard type devices normally operate in Quadrants I & III triggered from AC line. Alternistor type Quadracs are used in circuits requiring high dv/dt capability. F
