QK006R5, QK006L3 - Triac

Littelfuse

The QK006R5 by Littelfuse is a Triac. Below is the official datasheet preview.

📥 Download Datasheet

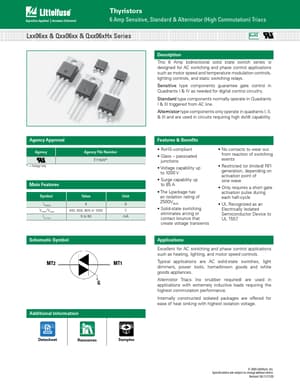

QK006R5 Triac by Littelfuse - Datasheet Preview — Official preview page of the **QK006R5** Triac datasheet (Littelfuse).

Datasheet Details

Part number	QK006R5, QK006L3
Manufacturer	Littelfuse
File Size	797.82 KB
Description	Triac
Datasheet	QK006L3-Littelfuse.pdf
Note	This datasheet PDF includes multiple part numbers: QK006R5, QK006L3. Please refer to the document for exact specifications by model.
Additional preview pages of the QK006R5 datasheet.

QK006R5 Product details

Description

This 6 Amp bidirectional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays.

Features

Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 6 400, 600, 800 or 1000 5 to 50 Unit A V mA Schematic Symbol MT2 MT1 G Additional Information Features & Benefits.
RoHS-compliant.
Glass.
passivated junctions.
Voltage capability up to 1000 V.
Surge capability up to 85 A.
The L-package has an isolation rating of 2500VRMS.
Solid-state switching eliminates arcing or contact bounce that create voltage transients.
No conta.
