QK006RH4, QK006L3 Triac

QK006RH4 Description

Thyristors 6 Amp Sensitive, Standard & Alternistor (High Commutation) Triacs Lxx06xx & Qxx06xx & Qxx06xHx Series RoHS .
This 6 Amp bidirectional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature mod.

QK006RH4 Features

* Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 6 400, 600, 800 or 1000 5 to 50 Unit A V mA Schematic Symbol MT2 MT1 G Additional Information Features & Benefits
* RoHS-compliant
* Glass
* passivated junctions
* Voltage capability up to 1000 V
* Surge cap

QK006RH4 Applications

* such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Sensitive type components guarantee gate control in Quadrants I & IV as needed for digital control circuitry. Standard type components normally operate in Quadrants I & III triggered from AC line

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: QK006RH4, QK006L3. Please refer to the document for exact specifications by model.

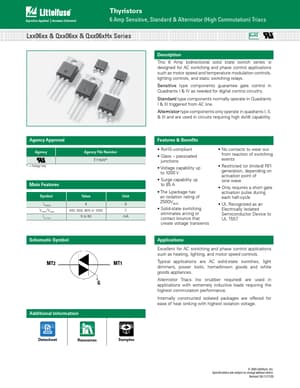

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QK006RH4, QK006L3
Manufacturer
Littelfuse ↗
File Size
797.82 KB
Datasheet
QK006L3-Littelfuse.pdf
Description
Triac
Note
This datasheet PDF includes multiple part numbers: QK006RH4, QK006L3.
Please refer to the document for exact specifications by model.
