S4010DS2, S4010LS2 Datasheet - Littelfuse

S4010DS2 Thyristors

This Sxx10x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 0.2 to 15 mA at approximately 1.5V, with a sensitive version of .

S4010DS2 Features

* Symbol IT(RMS) VDRM/ VRRM IGT Value 10 400 to 1000 0.2 to 15 Additional Information Unit A V mA Datasheet Resources Samples Features & Benefits

* Halogen free and RoHS compliant

* Glass

* passivated junctions

* Voltage capability up to 1000 V

* Sur

S4010LS2-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: S4010DS2, S4010LS2. Please refer to the document for exact specifications by model.

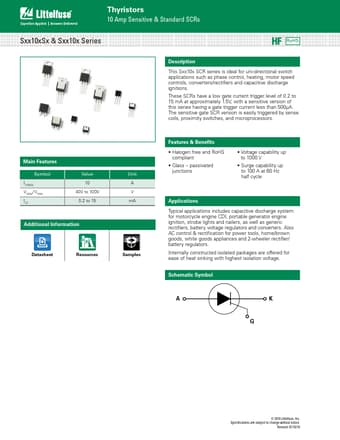

S4010DS2 Datasheet Preview Page 2 S4010DS2 Datasheet Preview Page 3

Datasheet Details

Part number:

S4010DS2, S4010LS2

Manufacturer:

Littelfuse ↗

File Size:

515.86 KB

Description:

Thyristors.

Note:

This datasheet PDF includes multiple part numbers: S4010DS2, S4010LS2.
Please refer to the document for exact specifications by model.
