S6006DS3

Thyristors

Littelfuse

S6006DS3 Features

* Symbol IT(RMS) VDRM/ VRRM IGT Value 6 400 to 1000 0.2 to 15 Additional Information Unit A V mA Datasheet Resources Samples RoHS Description This Sxx06x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and

S6006DS3 General Description

This Sxx06x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 0.2 to 15 mA at approximately 1.5V, with a sensitive version of.

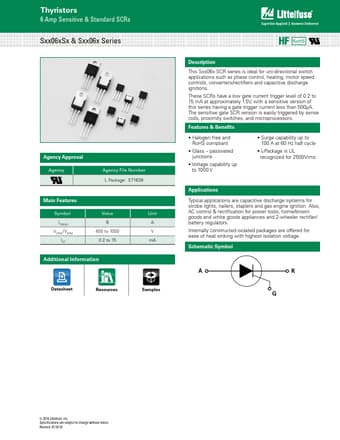

S6006DS3 Datasheet (536.83 KB)
