S6010NS3

Thyristors

Littelfuse

S6010NS3 Features

* Symbol IT(RMS) VDRM/ VRRM IGT Value 10 400 to 1000 0.2 to 15 Additional Information Unit A V mA Datasheet Resources Samples Features & Benefits

* Halogen free and RoHS compliant

* Glass

* passivated junctions

* Voltage capability up to 1000 V

* Sur

S6010NS3 General Description

This Sxx10x SCR series is ideal for uni-directional switch applications such as phase control, heating, motor speed controls, converters/rectifiers and capacitive discharge ignitions. These SCRs have a low gate current trigger level of 0.2 to 15 mA at approximately 1.5V, with a sensitive version of .

S6010NS3 Datasheet (501.62 KB)

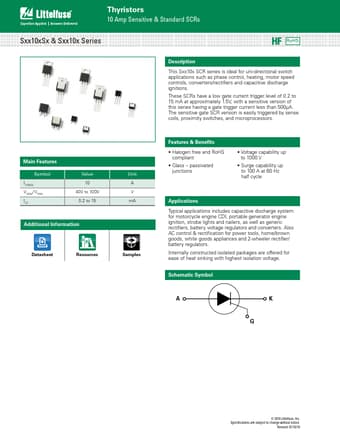

S6010NS3 Datasheet Preview — Preview of S6010NS3 PDF

Datasheet Details

Part number:

S6010NS3

Manufacturer:

Littelfuse ↗

File Size:

501.62 KB

Description:

Thyristors.
