SAC5.0 - Transient Voltage Suppression Diodes

Name: SAC5.0
SKU: SAC5.0-1298865

Littelfuse

📥 Download Datasheet

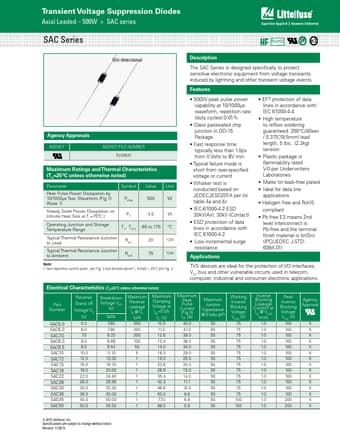

SAC5.0 Datasheet Preview — Preview of SAC5.0 PDF

Datasheet Details

Part number	SAC5.0
Manufacturer	Littelfuse
File Size	245.45 KB
Description	Transient Voltage Suppression Diodes
Datasheet	SAC5.0-Littelfuse.pdf

SAC5.0 Product details

Description

The SAC Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

Agency Approvals AGENCY AGENCY FILE NUMBER E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Peak Pulse Power Dissipation by 10/1000μs Test Waveform (Fig.1) (Note 1) PPPM Steady State Power Dissipation on Infinite Heat Sink at TL=75ºC ) Operating Junction and Storage Temperature Range PD TJ, TSTG Typical Thermal Resistance Junction to Lead RθJL Typical Thermal Resistance Junction to Ambient RθJA Value 500 3.0 -65 to 175 20 75 Uni.
