SD12C-01FTG Datasheet, Diode, Littelfuse

SD12C-01FTG Features

  • Diode
  • ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
  • EFT, IEC 61000-4-4, 40A (5/50ns)
  • Lightning, 30A (8/20μs as defined in IEC 61000-4-5 2nd edition) SD05C

PDF File Details

Part number:

SD12C-01FTG

Manufacturer:

Littelfuse ↗

File Size:

781.09kb

Download:

📄 Datasheet

Description:

450w discrete bidirectional tvs diode. The SD-C series can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation

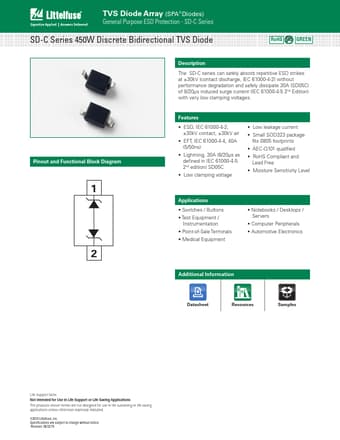

Datasheet Preview: SD12C-01FTG 📥 Download PDF (781.09kb)
Page 2 of SD12C-01FTG Page 3 of SD12C-01FTG

SD12C-01FTG Application

  • Applications
  • Switches / Buttons
  • Test Equipment / Instrumentation
  • Point-of-Sale Terminals
  • Medical Equipment

TAGS

SD12C-01FTG
450W
Discrete
Bidirectional
TVS
Diode
Littelfuse
