SD12C Datasheet - Windforce

SD12C Low capacitance bidirectional TVS Diodes

SDxxC Series SDxxC Series Low capacitance bidirectional TVS Diodes for ESD Protection SDxxC Series is high performance capacitance bidirectional TVS Diodes designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. These devices are ideal for situations where board space is at a premium. Fe.

SD12C Features

* Peak Power Dissipation

* 300 W (8 x 20 us Waveform)

* Replacement for MLV (0805)

* Protects One Power or I/O Port

* Low Clamping Voltage

* Low Leakage

* Response Time is < 1 ns

* Available in Multiple Voltages Ranging From 3V to36V

SD12C Datasheet (383.60 KB)

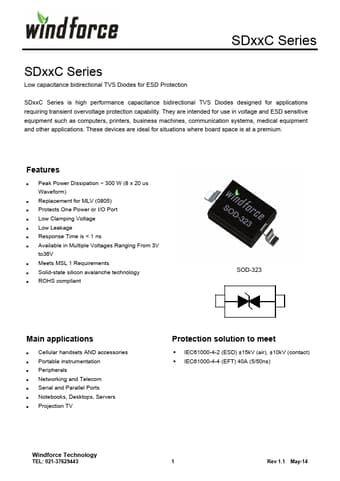

SD12C Datasheet Preview — Preview of SD12C PDF

Datasheet Details

Part number:

SD12C

Manufacturer:

Windforce

File Size:

383.60 KB

Description:

Low capacitance bidirectional tvs diodes.
