SG420Q Datasheet - Littelfuse

Gas Discharge Tubes

SG420Q Features

* RoHS compliant and Lead-free

* GHz working frequency

* Excellent stability on multiple pulse duty cycle

* Excellent response to fast rising transients.

* Ultra Low Insertion Loss

* 1-2KA surge capability tested with 8/20μS pulse as defined by IEC 61

SG420Q General Description

Littelfuse SG series GDT offers high surge ratings in a miniature package. It’s designed for surface mounting on PCB with small size 4.5x3.2x2.7mm. Low insertion loss is perfectly suited to broadband equipment applications. The capacitance does not vary with voltage, and will not cause operational p.

SG420Q Datasheet (656.82 KB)

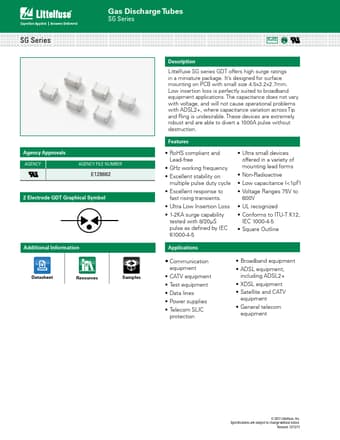

Preview of SG420Q PDF

Datasheet Details

Part number:

SG420Q

Manufacturer:

Littelfuse ↗

File Size:

656.82 KB

Description:

Gas discharge tubes.
SG Series Gas Discharge Tubes SG Series RoHS Agency Approvals AGENCY AGENCY FILE NUMBER E128662 2 Electrode GDT Graphical Symbol Additional Info.
