SLD15U-017 - TVS Diodes

This page provides the datasheet information for the SLD15U-017, a member of the SLD10U-017 TVS Diodes family.

Datasheet Summary

Description

The AEC-Q101 qualified SLD Series is packaged in a highly reliable industry standard P600 axial leaded package and is designed to provide precision overvoltage protection for sensitive electronics.

Features

  • & Benefits.
  • High reliability.

📥 Download Datasheet

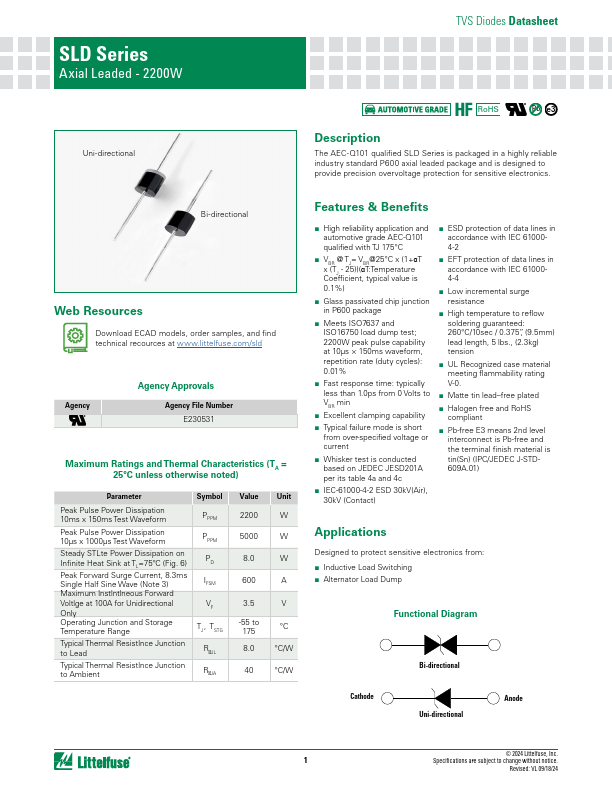

Datasheet preview – SLD15U-017

Datasheet Details

Part number SLD15U-017
Manufacturer Littelfuse
File Size 688.49 KB
Description TVS Diodes
Datasheet download datasheet SLD15U-017 Datasheet

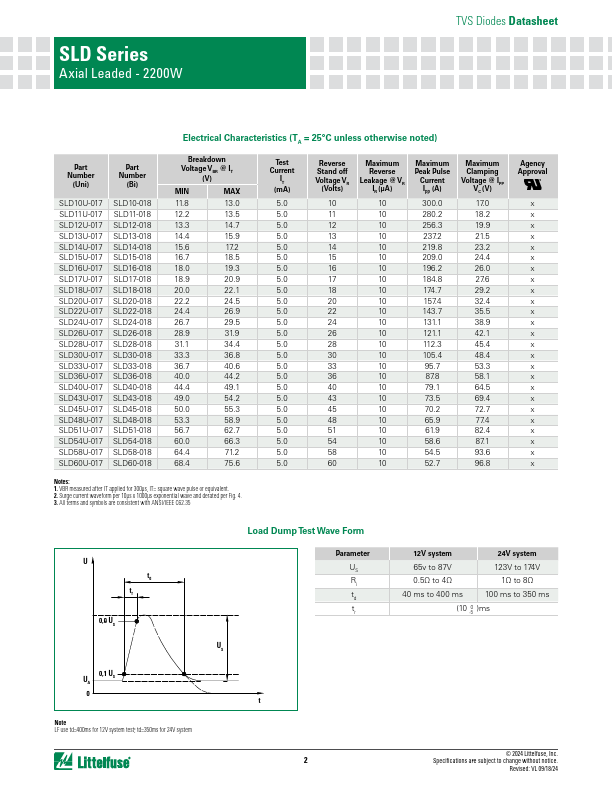

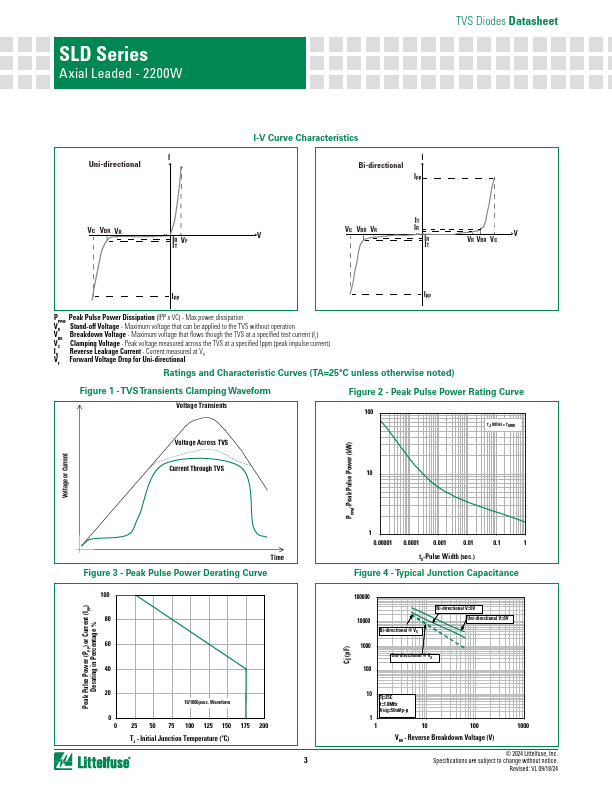

Additional preview pages of the SLD15U-017 datasheet.

📁 Similar Datasheet

  • SLD15A - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD15CA - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD100N03T - 30V N-Channel MOSFET (Msemitek)
  • SLD104AU - AlGaAs Laser Diode (Sony Corporation)
  • SLD104AV - GaAlAs Laser Diode (Sony Corporation)
  • SLD105UL - GaAlAs Laser Diode (Sony Corporation)
  • SLD105VL - GaAlAs Laser Diode (Sony Corporation)
  • SLD10A - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD10CA - 6000Watt Transient Voltage Suppressors (MCC)
  • SLD10UAA - 10A Non-Isolated DC/DC Converter (Power-One)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
SLD Series Axial Leaded - 2200W TVS Diodes Datasheet Uni-directional RoHS Pb e3 Description The AEC-Q101 qualified SLD Series is packaged in a highly reliable industry standard P600 axial leaded package and is designed to provide precision overvoltage protection for sensitive electronics. Bi-directional Web Resources Download ECAD models, order samples, and find technical recources at www.littelfuse.com/sld Agency Agency Approvals Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA = 25°C unless otherwise noted) Parameter Peak Pulse Power Dissipation 10ms x 150ms Test Waveform Peak Pulse Power Dissipation 10μs x 1000μs Test Waveform Steady STLte Power Dissipation on Infinite Heat Sink at TL=75ºC (Fig. 6) Peak Forward Surge Current, 8.
