SP5002 Datasheet - Littelfuse

6 Channel Common Mode Filter

SP5002 Features

* Large differential bandwidth > 2GHz

* High Common Mode Stop Band Attenuation: > 25 dB at 700 MHz > 30 dB at 800 MHz

* ±15kV ESD protection per channel (IEC 610004-2 Level 4, contact discharge and ±30kV air discharge) Applications

* TDFN-16 4.00mm × 2.00mm × 0.75mm

SP5002 General Description

The SP5002 Series is a highly integrated Common Mode Filter (CMF) providing both ESD protection and EMI common mode noise filtering for systems using high speed differential serial interfaces, such as MIPI D-PHY. The SP5002 Series can protect and filter three differential line pairs in a small RoHS-.

SP5002 Datasheet (666.54 KB)

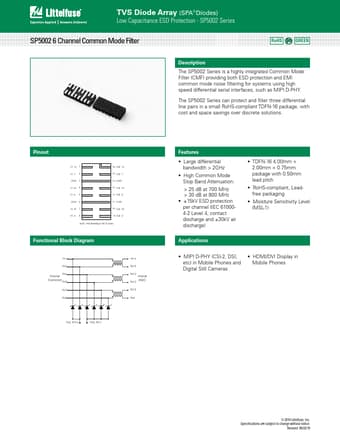

Preview of SP5002 PDF

Datasheet Details

Part number:

SP5002

Manufacturer:

Littelfuse ↗

File Size:

666.54 KB

Description:

6 channel common mode filter.
