Part number: SP5003
Manufacturer: Littelfuse (https://www.littelfuse.com/)
File Size: 522.58KB
Download: 📄 Datasheet

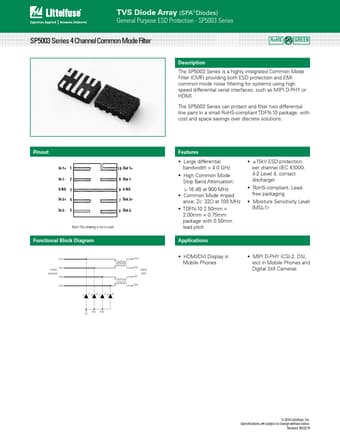

Description: 4 Channel Common Mode Filter
* Large differential bandwidth > 4.0 GHz
* High Common Mode Stop Band Attenuation:
> 16 dB at 900 MHz
* Common Mode Imped
ance: Zc: 32Ω at 100 MHz
* TDFN-.
* HDMI/DVI Display in Mobile Phones
* MIPI D-PHY (CSI-2, DSI, etc) in Mobile Phones and Digital Still Cameras
.
The SP5003 Series is a highly integrated Common Mode Filter (CMF) providing both ESD protection and EMI common mode noise filtering for systems using high speed differential serial interfaces, such as MIPI D-PHY or HDMI.
The SP5003 Series can protect.
