SP8142-04UTG - 1.0pF 22KV Diode Array

This page provides the datasheet information for the SP8142-04UTG, a member of the SP8142 1.0pF 22KV Diode Array family.

Datasheet Summary

Description

The SP814x series integrates 4 or 6 channels of ultra low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD).

Features

  • ESD, IEC 61000-4-2, ±22kV contact, ±22kV air.
  • EFT, IEC 61000-4-4, 40A (tP=5/50ns).
  • Lightning, IEC 610004-5 2nd edition,2.5A (tP=8/20μs).
  • Low capacitance of 1.0pF (TYP) per I/O.
  • Low leakage current of 25nA (TYP) at 5V.
  • Small form factor μDFN packages (JEDEC MO-229) saves board space.
  • AEC-Q101 qualified.
  • Moisture Sensitivity Level (MSL -1).
  • Halogen free, lead free and RoHS compliant.

📥 Download Datasheet

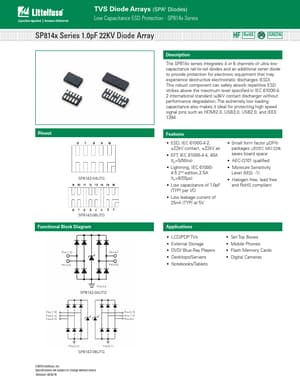

Datasheet preview – SP8142-04UTG

Datasheet Details

Part number SP8142-04UTG
Manufacturer Littelfuse
File Size 476.29 KB
Description 1.0pF 22KV Diode Array
Datasheet download datasheet SP8142-04UTG Datasheet
Additional preview pages of the SP8142-04UTG datasheet.

📁 Similar Datasheet

  • SP810 - 3 Pin Microprocessor Supervisor Circuit (Maxlinear)
  • SP810 - (SP809 / SP810) 3 Pin Microprocessor Supervisor Circuit (Sipex Corporation)
  • SP810 - 3 Pin Microprocessor Supervisor Circuit (Exar)
  • SP8100S - 8.0AMP Schottky Barrier Rectifiers (SeCoS)
  • SP8100S - Schottky Barrier Rectifiers (Eris)
  • SP8107 - Three Channel High Performance Laser Driver (Sipex)
  • SP8110 - Two-Channel Modulation IC for Laser Diode (Sipex)
  • SP8110ER - Two-Channel Modulation IC for Laser Diode (Sipex)
  • SP8121 - Monolithic / 12-Bit Data Acquisition System (Sipex)
  • SP8121JP - Monolithic / 12-Bit Data Acquisition System (Sipex)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text
TVS Diode Arrays (SPA®®Diodes) Low Capacitance ESD Protection - SP814x Series SP814x Series 1.0pF 22KV Diode Array RoHS Pb GREEN Pinout SP8142-04UTG SP8143-06UTG Functional Block Diagram Description The SP814x series integrates 4 or 6 channels of ultra low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust component can safely absorb repetitive ESD strikes above the maximum level specified in IEC 61000-42 international standard (±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as HDMI2.0, USB3.0, USB2.0, and IEEE 1394.
