SP8143-06UTG, SP8142 Datasheet - Littelfuse

SP8143-06UTG 1.0pF 22KV Diode Array

The SP814x series integrates 4 or 6 channels of ultra low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust component can safely absorb repetitive ESD strikes above .

SP8143-06UTG Features

* ESD, IEC 61000-4-2, ±22kV contact, ±22kV air

* EFT, IEC 61000-4-4, 40A (tP=5/50ns)

* Lightning, IEC 610004-5 2nd edition,2.5A (tP=8/20μs)

* Low capacitance of 1.0pF (TYP) per I/O

* Low leakage current of 25nA (TYP) at 5V

* Small form factor μD

SP8142-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SP8143-06UTG, SP8142. Please refer to the document for exact specifications by model.

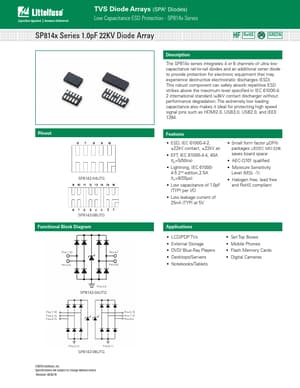

SP8143-06UTG Datasheet Preview Page 2 SP8143-06UTG Datasheet Preview Page 3

Datasheet Details

Part number:

SP8143-06UTG, SP8142

Manufacturer:

Littelfuse ↗

File Size:

476.29 KB

Description:

1.0pf 22kv diode array.

Note:

This datasheet PDF includes multiple part numbers: SP8143-06UTG, SP8142.
Please refer to the document for exact specifications by model.
