SZ1.5SMC15AT3G, SZ1.5SMC6.8AT3G Datasheet - Littelfuse

SZ1.5SMC15AT3G, SZ1.5SMC6.8AT3G, TVS Diodes

SZ1.5SMC Series Surface Mount > 1500W TVS Diodes Datasheet RoHS Pb e3 .
The SZ1.

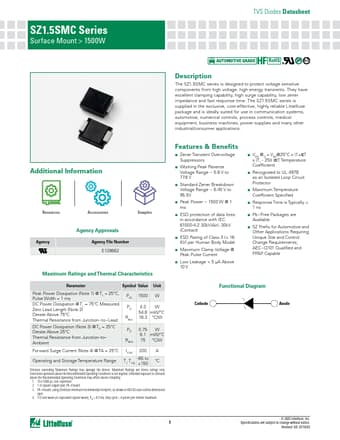

datasheet Preview Page 1 from Datasheet4u.com

SZ1.5SMC6.8AT3G-Littelfuse.pdf

SZ1.5SMC15AT3G Datasheet Preview — This datasheet PDF includes multiple part numbers: SZ1.5SMC15AT3G, SZ1.5SMC6.8AT3G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SZ1.5SMC15AT3G, SZ1.5SMC6.8AT3G

Manufacturer:

Littelfuse ↗

File Size:

634.61 KB

Description:

TVS Diodes

Note:

This datasheet PDF includes multiple part numbers: SZ1.5SMC15AT3G, SZ1.5SMC6.8AT3G.
Please refer to the document for exact specifications by model.

Features

* & Benefits
* Zener Transient Overvoltage Suppressors
* Working Peak Reverse Voltage Range
* 5.8 V to 77.8 V
* Standard Zener Breakdown Voltage Range
* 6.45 V to 95.5V
* Peak Power
* 1500 W @ 1 ms
* ESD protection of data lines in accordance with IEC 61000-

Applications

* Additional Information Resources Agency Accessories Samples Agency Approvals Agency File Number E128662 Maximum Ratings and Thermal Characteristics Parameter Symbol Value Unit Peak Power Dissipation (Note 1) @ TL = 25°C, Pulse Width = 1 ms DC Power Dissipation @ TL = 75°C Measured Zero Lea
