SZ1.5SMC22AT3G, SZ1.5SMC6.8AT3G Datasheet - Littelfuse

SZ1.5SMC22AT3G TVS Diodes

The SZ1.5SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1.5SMC series is supplied in the exclusive, cost-effective, highly reli.

SZ1.5SMC22AT3G Features

* & Benefits

* Zener Transient Overvoltage Suppressors

* Working Peak Reverse Voltage Range

* 5.8 V to 77.8 V

* Standard Zener Breakdown Voltage Range

* 6.45 V to 95.5V

* Peak Power

* 1500 W @ 1 ms

* ESD protection of data lines in accordance with IEC 61000-

SZ1.5SMC6.8AT3G-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SZ1.5SMC22AT3G, SZ1.5SMC6.8AT3G. Please refer to the document for exact specifications by model.

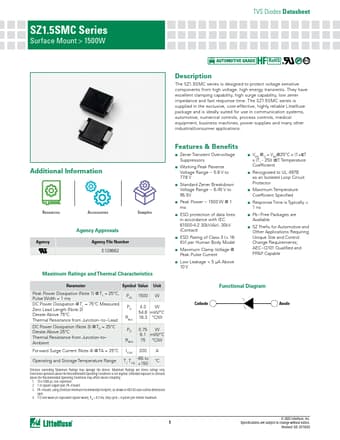

SZ1.5SMC22AT3G Datasheet Preview Page 2 SZ1.5SMC22AT3G Datasheet Preview Page 3

Datasheet Details

Part number:

SZ1.5SMC22AT3G, SZ1.5SMC6.8AT3G

Manufacturer:

Littelfuse ↗

File Size:

634.61 KB

Description:

Tvs diodes.

Note:

This datasheet PDF includes multiple part numbers: SZ1.5SMC22AT3G, SZ1.5SMC6.8AT3G.
Please refer to the document for exact specifications by model.
