V14MLN41206 - Multiline Transient Voltage Surge Suppressor

Littelfuse

The V14MLN41206 by Littelfuse is a Multiline Transient Voltage Surge Suppressor. Below is the official datasheet preview.

📥 Download Datasheet

V14MLN41206 Multiline Transient Voltage Surge Suppressor by Littelfuse - Datasheet Preview — Official preview page of the V14MLN41206 Multiline Transient Voltage Surge Suppressor datasheet (Littelfuse).

Datasheet Details

Part number	V14MLN41206
Manufacturer	Littelfuse
File Size	170.10 KB
Description	Multiline Transient Voltage Surge Suppressor
Datasheet	V14MLN41206_Littelfuse.pdf

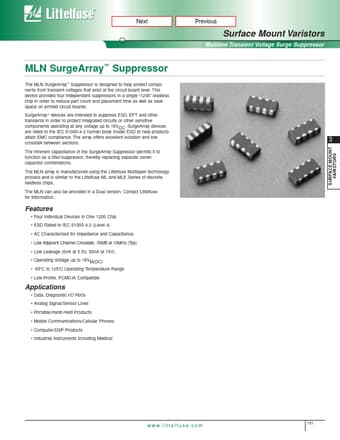

Additional preview pages of the V14MLN41206 datasheet.

V14MLN41206 Product details

Features

Four Individual Devices in One 1206 Chip.
ESD Rated to IEC 61000-4-2 (Level 4).
AC Characterized for Impedance and Capacitance.
Low Adjacent Channel Crosstalk, -55dB at 10MHz (Typ).
Low Leakage (6nA at 5.5V, 30nA at 15V).
Operating Voltage up to 18VM(DC).
-55oC to 125oC Operating Temperature Range.
Low-Profile, PCMCIA Compatible.
