Metal-Oxide Varistors

V20E14P Features

* Breakthrough in low

* High operating voltage varistor design temperature range provides high peak (up to up to 125ºC (phenolic 10KA) surge current rating coating option)

* Reduced footprint and

* 5 model sizes available: volume required for 5, 7, 10, 14, an

V20E14P General Description

The Littelfuse LV UltraMOV® Varistor Series provides an ideal circuit protection solution for DC voltage applications. The maximum peak surge current rating can reach up to 10kA (8/20μs pulse) to protect against the damage from high peak surge current induced by indirect lightning strike interferenc.

V20E14P Datasheet (743.61 KB)

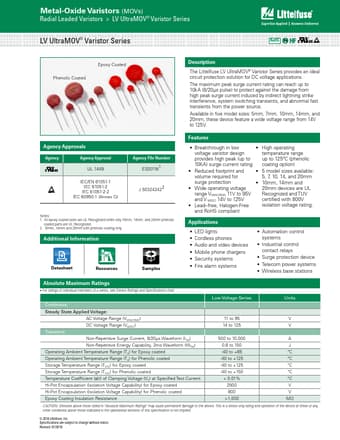

V20E14P Datasheet Preview — Preview of V20E14P PDF

Datasheet Details

Part number:

V20E14P

Manufacturer:

Littelfuse ↗

File Size:

743.61 KB

Description:

Metal-oxide varistors.
Metal-Oxide Varistors (MOVs) Radial Leaded Varistors > LV UltraMOV® Varistor Series LV UltraMOV® Varistor Series RoHS Phenolic Coated Epoxy Coated.
