V20100S, High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V20100S, VI20100S Vishay General Semiconductor High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.446 V at IF = 5 A .

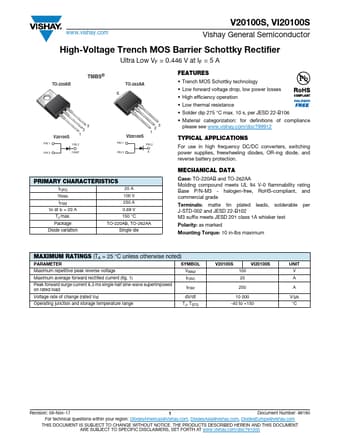

datasheet Preview Page 1 from Datasheet4u.com

V20100S_Vishay.pdf

V20100S Datasheet Preview — Preview of V20100S PDF

Datasheet Details

Part number:

V20100S

Manufacturer:

Vishay ↗

File Size:

140.90 KB

Description:

High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Low thermal resistance
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Material categorization: For definitions o

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) 20 A VRRM 100 V IFSM VF at IF = 20 A 250 A 0.69 V TJ max. 150 °C Package TO-220AB, TO-262AA Diode variation Single die
