V275LA10CP - Radial Leaded Varistors

Littelfuse

📥 Download Datasheet

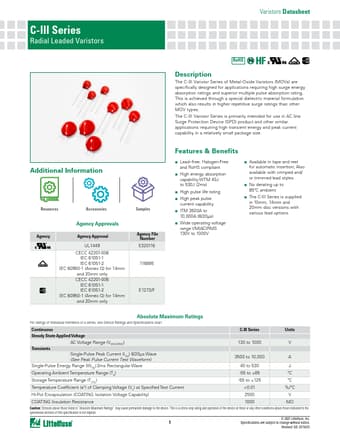

V275LA10CP Datasheet Preview — Preview of V275LA10CP PDF

Datasheet Details

Part number: V275LA10CP
Manufacturer: Littelfuse ↗
File Size: 877.04 KB
Datasheet: V275LA10CP-Littelfuse.pdf
Description: Radial Leaded Varistors

V275LA10CP Product details

Description

The C-III Varistor Series of Metal-Oxide Varistors (MOVs) are specifically designed for applications requiring high surge energy absorption ratings and superior multiple pulse absorption rating.

Features

& Benefits.
Lead.
free, Halogen-Free and RoHS compliant.
High energy absorption capability WTM 40J to 530J (2ms).
High pulse life rating.
High peak pulse current capability.
ITM 3500A to 10,000A (8/20µs).
Wide operating voltage range VM(AC)RMS 130V to 1000V.
Available in tape and reel for automatic insertion; Also available with crimped and/ or trimmed lead styles.
No derating up to 85ºC ambient.
The C-III Series is supplied in 10mm, 14mm and.
