V275LA20AP Metal-Oxide Varistors

The LA Varistor Series of transient voltage surge suppressors are radial leaded varistors (MOVs) that are designed to be operated continuously across AC power lines. These UL recognized varistors require very little mounting space, and are offered in various standard lead form options. The LA Varis.

V275LA20AP Features

* Lead

* free, HalogenFree and RoHS compliant.

* Energy absorption capability (WTM) up to 360J

* Wide operating voltage range VM(AC)RMS 130V to 1000V

* No derating up to 85ºC ambient

* Available in tape and reel or bulk pack Absolute Maximum Ratings

V130-LA1P.pdf

This datasheet PDF includes multiple part numbers: V275LA20AP, V130. Please refer to the document for exact specifications by model.

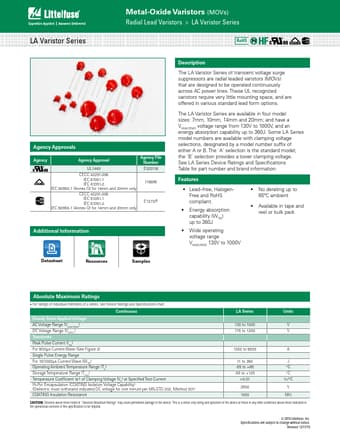

V275LA20AP Datasheet Preview Page 2 V275LA20AP Datasheet Preview Page 3

Datasheet Details

Part number:

V275LA20AP, V130

Manufacturer:

Littelfuse ↗

File Size:

1.56 MB

Description:

Metal-oxide varistors.

Note:

This datasheet PDF includes multiple part numbers: V275LA20AP, V130.
Please refer to the document for exact specifications by model.
