CD1517, CD1517-Long 2 x 6W stereo power amplifier

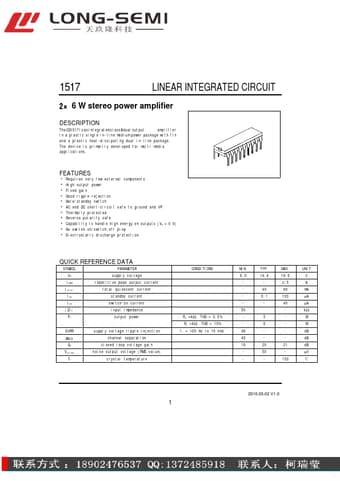

📥 Download Datasheet  Datasheet Preview Page 1

Description

1517 LINEAR INTEGRATED CIRCUIT 2×6 W stereo power amplifier .
The CD1517 is an integrated class-B dual output amplifier in a plastic single in-line medium power package with fin and a plastic heat-dissipating.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CD1517, CD1517-Long. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
CD1517, CD1517-Long
Manufacturer
Long-Semi
File Size
625.58 KB
Datasheet
CD1517-Long-Semi.pdf
Description
2 x 6W stereo power amplifier
Note
This datasheet PDF includes multiple part numbers: CD1517, CD1517-Long.
Please refer to the document for exact specifications by model.

Features

* γ Requires very few external components γ High output power γ Fixed gain γ Good ripple rejection γ Mute/standby switch γ AC and DC short-circuit safe to ground and VP γ Thermally protected γ Reverse polarity safe γ Capability to handle high energy on outputs (VP = 0 V) γ No switch-on/switch-off plop
