LT7911D Datasheet - Lontium

Type-C to Dual-port MIPI DSI/CSI

LT7911D Features

* Type-C

* Compliant with VESA DisplayPort Alt Mode on USB TypeC Standard version1.0

* Compliant with USB Power Delivery Rev.2.0

* Compatible with USB Type-C V1.1

* Compliant with HDMI 1.4b Alt Mode on USB Type-C specification V1.0

* Built-in CC controller for plug and orient

LT7911D General Description

The LT7911D is a high performance Type-C to MIPI®DSI/CSI chip for VR/Smart phone/Display application. For DP1.2 input, LT7911D can be configured as 1,2,4 lane, also support lane swap function. Adaptive equalization makes it suitable for long cable application and the maximum bandwidth is up to 21.6G.

LT7911D Datasheet (1.66 MB)

LT7911D Datasheet Preview — Preview of LT7911D PDF

Datasheet Details

Part number:

LT7911D

Manufacturer:

Lontium

File Size:

1.66 MB

Description:

Type-c to dual-port mipi dsi/csi.

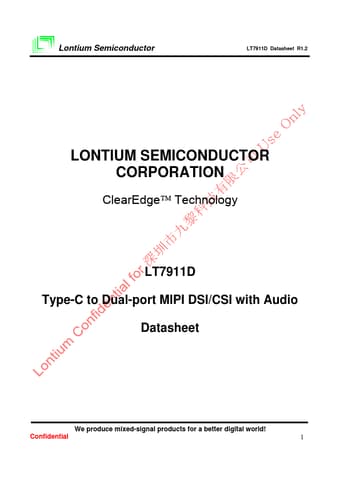

Lontium Semiconductor LT7911D Datasheet R1.2 LONTIUM SEMICONDUCTOR CORPORATION ClearEdge Technology LT7911D Type-C to Dual-port MIPI DSI/CSI with A.
