LP5302

Over Voltage and Over Current Protection

LP5302 Features

* Input Voltage Range: 3.5V to 36V

* Typical Output Power on Time: 9ms

* OVP Threshold: 6.1V

* OVP Threshold Time Less Than 1μs

* Programmable Current Limit up to 2.1A (without external NMOS)

* Low RDS(ON) Internal Switches:130mΩ @ 5V /1A

* Output Discharge

* Thermal

LP5302 General Description

The LP5302 is an Over-Voltage-Protection (OVP) and programmable Over-Current-Protection (OCP) device. The device will switch off internal MOSFET to disconnect VIN to VOUT to protect load when any of input voltage, input current over the threshold. The Over temperature protection (OTP) function monit.

LP5302 Datasheet (695.58 KB)

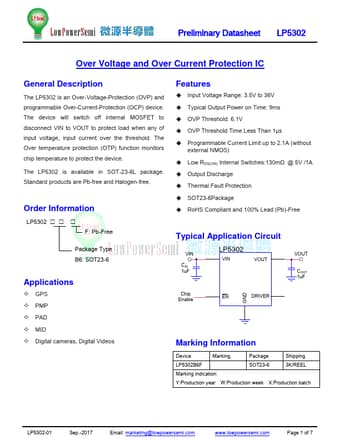

Preview of LP5302 PDF

Datasheet Details

Part number:

LP5302

Manufacturer:

Lowpowersemi

File Size:

695.58 KB

Description:

Over voltage and over current protection.
