LP6282 - LCD Bias Power

General Description

The LP6282 includes a high-efficiency boost regulator, a VCOM buffer, and dual charge pump controller for active matrix TFT LCDs.

The converter is a high switching frequency current-mode regulator with an integrated N-Channel MOSFET that allows the use of small inductors and ceramic capacitors.

Key Features

  • high short-circuit current, fast slew rate and rail-to-rail inputs and outputs. Other features include under-voltage protection, short circuit protection, thermal shutdown protection and under-voltage lockout (UVLO). The LP6282 is available in a space saving QFN-20 (0.4mm pitch) package. Order Information LP6282.
  • F: Green Package Type QV.

📥 Download Datasheet

Datasheet Details

Part number LP6282
Manufacturer Lowpowersemi
File Size 274.79 KB
Description LCD Bias Power
Datasheet download datasheet LP6282 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LP6208 Tink Package High Efficiency Boost DC - DC Regulator POWER
LP621024D 128K X 8 BIT CMOS SRAM AMIC Technology
LP621024D-T 128K x 8-BIT CMOS SRAM AMIC
LP621024E 128K x 8 BIT CMOS SRAM AMIC Technology
LP62E16256E-T 256K X 16 BIT LOW VOLTAGE CMOS SRAM AMIC Technology

Other Datasheets by Lowpowersemi

Part Number Description
LP6280 Dual Channel Output LCD Bias Power
LP6283 Power Management
LP6284 Multi-Channel DC-DC Converter
LP6285 Multi-Channel DC-DC Converter
LP6286 Multi-Channel DC-DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

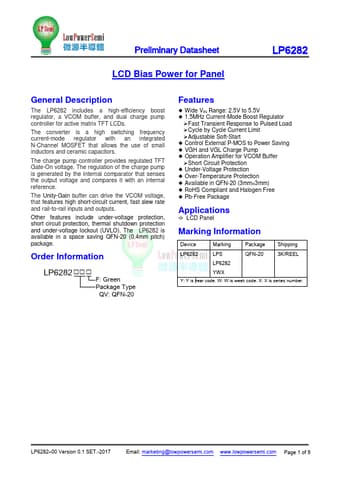

Preliminary Datasheet LCD Bias Power for Panel LP6282 General Description The LP6282 includes a high-efficiency boost regulator, a VCOM buffer, and dual charge pump controller for active matrix TFT LCDs. The converter is a high switching frequency current-mode regulator with an integrated N-Channel MOSFET that allows the use of small inductors and ceramic capacitors. The charge pump controller provides regulated TFT Gate-On voltage. The regulation of the charge pump is generated by the internal comparator that senses the output voltage and compares it with an internal reference. The Unity-Gain buffer can drive the VCOM voltage, that features high short-circuit current, fast slew rate and rail-to-rail inputs and outputs.
