LXR7-RW57 multi-die LED

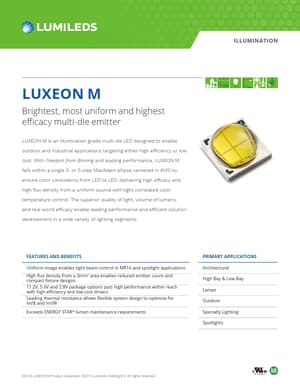

ILLUMINATION LUXEON M Brightest, most uniform and highest efficacy multi-die emitter LUXEON M is an illumination grade multi-die LED designed to enable outdoor and industrial applications targeting either high efficiency or low cost. With Freedom from Binning and leading performance, LUXEON M falls within a single 3- or 5-step MacAdam ellipse centered in ANSI to ensure color consistency from LED to LED, delivering high efficacy and high flux density from a uniform source with tight correlated c.

LXR7-RW57 Features

* Uniform image enables tight beam control in MR16 and spotlight applications High flux density from a 3mm2 area enables reduced emitter count and compact fixture designs 11.2V, 5.6V and 2.8V package options puts high performance within reach with high efficiency and low cost d
