IS31FL3216

16-CHANNELS LED DRIVER

IS31FL3216 Features

* 2.7V to 5.5V supply

* I2C interface, automatic address increment function

* Internal RAM

* Modulate LED brightness with 256 steps PWM

* Each channel can be controlled independently

* Auto Frame Play Mode with 8 frames

* 8 frames memory for animations

* Audio Frame M

IS31FL3216 General Description

The IS31FL3216 is a fun light LED controller with an audio modulation mode. It can store data of 8 frames with internal RAM to play small animations automatically. IS31FL3216 can sample the input signal to modulate the intensity of LEDs, or control 8 frames playing by internal ADC block. The LED cur.

IS31FL3216 Datasheet (719.12 KB)

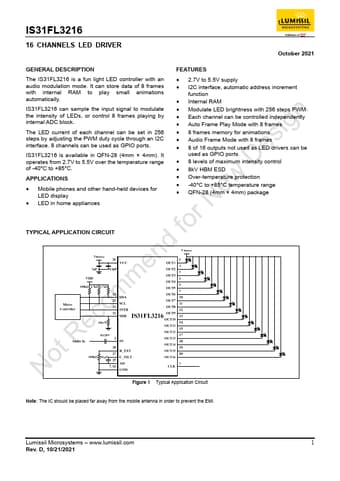

Preview of IS31FL3216 PDF

Datasheet Details

Part number:

IS31FL3216

Manufacturer:

Lumissil

File Size:

719.12 KB

Description:

16-channels led driver.
