IS31FL3193 - 3-CHANNEL FUN LED DRIVER

IS31FL3193 Description

IS31FL3193 3-CHANNEL FUN LED DRIVER January 2012 GENERAL .
IS31FL3193 is a 3-channel fun LED driver which features two-dimensional auto breathing mode.

IS31FL3193 Features

* two-dimensional auto breathing mode. It has One Shot Programming mode and PWM Control mode for RGB lighting effects. The maximum output current can be adjusted in 5 levels (5mA~42mA). In PWM Control mode, the PWM duty cycle of each output can be independently programmed and controlled in 256 steps t

IS31FL3193 Applications

* Mobile phones and other hand-held devices for LED display LED in home appliances TYPICAL APPLICATION CIRCUIT http://www. DataSheet4U. net/ Figure 1 Typical Application Circuit Note: The IC should be placed far away from the mobile antenna in order to prevent the EMI. Integrated Silic

📥 Download Datasheet

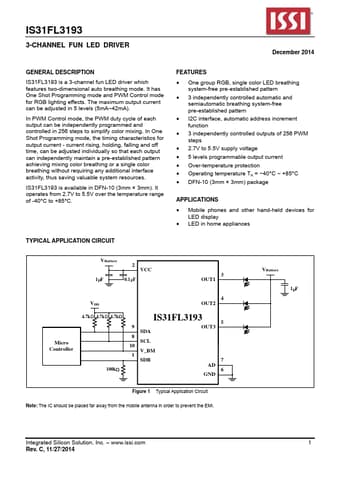

Preview of IS31FL3193 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS31FL3193
Manufacturer
ISSI
File Size
322.18 KB
Datasheet
IS31FL3193_ISSI.pdf
Description
3-CHANNEL FUN LED DRIVER
