IS31FL3216A

16 CHANNELS LED DRIVER

IS31FL3216A Features

* 2.7V to 5.5V supply

* I2C interface, automatic address increment function

* Internal RAM

* Modulate LED brightness with 256 steps PWM

* PWM frequency up to 26kHz

* Each channel can be controlled independently

* Auto Frame Play Mode wi

IS31FL3216A General Description

The IS31FL3216A is a fun light LED controller with an audio modulation mode. It can store data of 8 frames with internal RAM to play small animations automatically. IS31FL3216A can sample the input signal to modulate the intensity of LEDs, or control 8 frames playing by internal ADC block. The LED c.

IS31FL3216A Datasheet (423.64 KB)

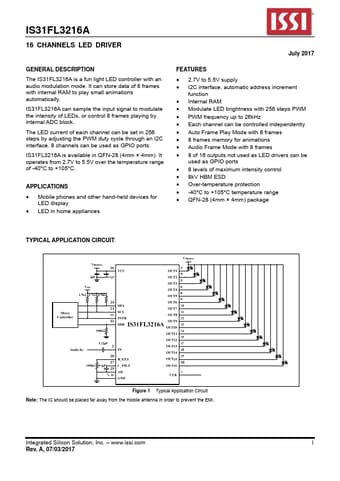

Preview of IS31FL3216A PDF

Datasheet Details

Part number:

IS31FL3216A

Manufacturer:

ISSI

File Size:

423.64 KB

Description:

16 channels led driver.
