IS31FL3236A

36-CHANNEL LED DRIVER

IS31FL3236A Features

* 2.7V to 5.5V supply

* I2C interface, automatic address increment function

* Four selectable I2C addresses

* SDB rising edge reset I2C module

* Internal reset register

* Modulate LED brightness with 256 steps PWM

* Each channel can be controll

IS31FL3236A General Description

IS31FL3236A is comprised of 36 constant current channels each with independent PWM control, designed for driving LEDs, PWM frequency can be 3kHz or 22kHz. The output current of each channel can be set at up to 38mA (Max.) by an external resistor and independently scaled by a factor of 1, 1/2, 1/3 an.

IS31FL3236A Datasheet (499.93 KB)

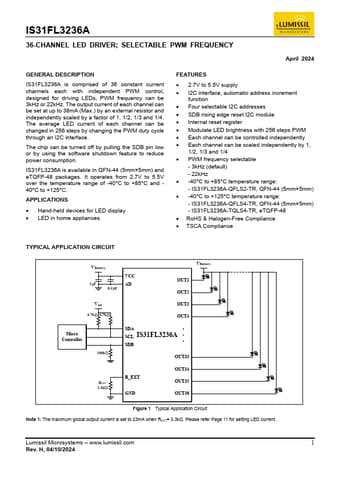

Preview of IS31FL3236A PDF

Datasheet Details

Part number:

IS31FL3236A

Manufacturer:

Lumissil

File Size:

499.93 KB

Description:

36-channel led driver.
