IS31FL3238 18-CHANNEL LED DRIVER

Lumissil

IS31FL3238 Description

IS31FL3238 18-CHANNEL LED DRIVER GENERAL .
IS31FL3238 is an LED driver with 18 constant current channels.

IS31FL3238 Features

* 2.7V to 5.5V VCC supply
* 1MHz I2C interface, automatic address increment function with readout function
* Four selectable I2C addresses
* Accurate color rendition - Selectable 16-bit PWM 256/1024/4096/65536 - 8-bit dot correction - 8-bit global current adjust
* Open/Short dete

IS31FL3238 Applications

* AI-speakers and smart home devices
* Hand-held devices for LED display
* LED in home appliances Figure 1 Typical Application Circuit Lumissil Microsystems
* www. lumissil. com 1 Rev. A, 06/24/2019 IS31FL3238 Figure 2 Typical Application Circuit Note 1: VLED+ should be same a

📥 Download Datasheet

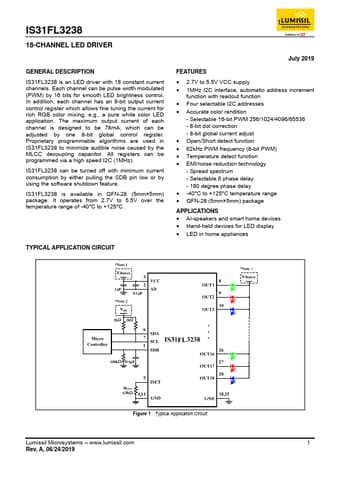

IS31FL3238 Datasheet Preview — Preview of IS31FL3238 PDF

Datasheet Details

Part number: IS31FL3238
Manufacturer: Lumissil
File Size: 445.30 KB
Datasheet: IS31FL3238-Lumissil.pdf
Description: 18-CHANNEL LED DRIVER
