IS31FL3237 Description

IS31FL3237 36-CHANNEL LED DRIVER WITH 16-BIT PWM March 2022 GENERAL .
The IS31FL3237 is an LED driver with 36 constant current channels.

IS31FL3237 Features

* 2.7V to 5.5V VCC supply
* Pin to pin with IS31FL3236/IS31FL3236A (QFN-44, 5mm×5mm)
* 1MHz I2C interface, automatic address increment function with readout function
* Four selectable I2C addresses
* Accurate color rendition - Selectable 8-bit/10-bit/12-bit/16-bit PWM - 8-bit dot

IS31FL3237 Applications

* AI-speakers and smart home devices
* LED in home appliances
* LED display for hand-held devices Lumissil Microsystems
* www. lumissil. com 1 Rev. F, 02/21/2022 IS31FL3237 TYPICAL APPLICATION CIRCUIT
* Note 1 VCC=VBattery 38 37 1F 0.1 F VCC AD
* Note 2 VIH 43 OUT1

📥 Download Datasheet

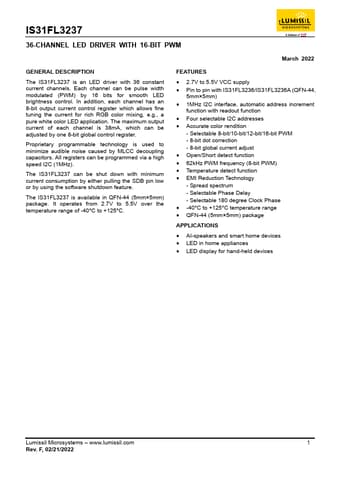

IS31FL3237 Datasheet Preview — Preview of IS31FL3237 PDF

Datasheet Details

Part number: IS31FL3237
Manufacturer: Lumissil
File Size: 527.29 KB
Datasheet: IS31FL3237-Lumissil.pdf
Description: 36-CHANNEL LED DRIVER
