IS32LT3147 - 6-CHANNEL LINEAR LED DRIVER

Lumissil

📥 Download Datasheet

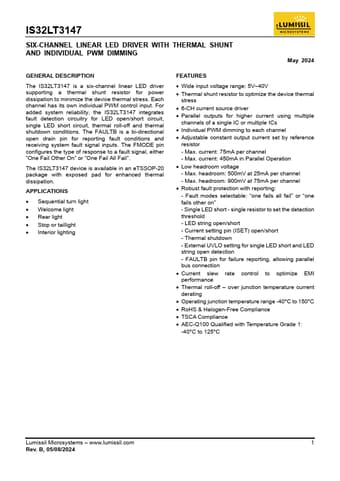

IS32LT3147 Datasheet Preview — Preview of IS32LT3147 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IS32LT3147
Manufacturer: Lumissil
File Size: 973.08 KB
Datasheet: IS32LT3147-Lumissil.pdf
Description: 6-CHANNEL LINEAR LED DRIVER

IS32LT3147 Product details

Description

The IS32LT3147 is a six-channel linear LED driver supporting a thermal shunt resistor for power dissipation to minimize the device thermal stress.

Features

Wide input voltage range: 5V~40V.
Thermal shunt resistor to optimize the device thermal stress.
6-CH current source driver.
Parallel outputs for higher current using multiple channels of a single IC or multiple ICs.
Individual PWM dimming to each channel.
Adjustable constant output current set by reference resistor - Max. current: 75mA per channel - Max. current: 450mA in Parallel Operation.
Low headroom voltage - Max. headroom: 500.
