IS32LT3146

STANDALONE 6-CHANNEL LINEAR LED DRIVER

IS32LT3146 Features

* Wide input voltage range: 5V~40V

* Thermal shunt resistor to optimize the device thermal stress

* Programmable sequential turn on of each channel - ±5% timer accuracy - Timing programmable by external resistors - Stand-alone sequential turn on timing for multiple devices op

IS32LT3146 General Description

The IS32LT3146 device is a six-channel linear LED driver with a power resistor to shunt the power dissipation to optimize the thermal stress on the device. It supports both sequential turn on mode and traditional blink mode for turn signal light application. A logic level at the SEQEN pin is used to.

IS32LT3146 Datasheet (870.63 KB)

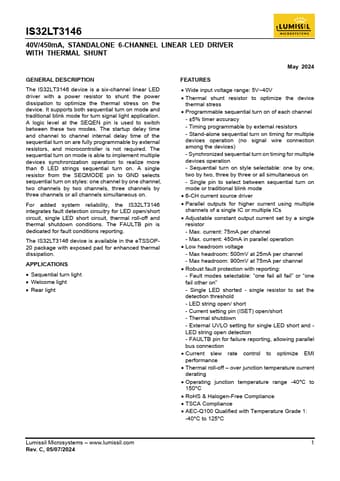

Preview of IS32LT3146 PDF

Datasheet Details

Part number:

IS32LT3146

Manufacturer:

Lumissil

File Size:

870.63 KB

Description:

Standalone 6-channel linear led driver.
