A59

Cascadable Amplifier

A59 Features

* HIGH DYNAMIC RANGE: +118 DBM (1 MHz Band)

* HIGH OUTPUT POWER: +22 dBm (TYP.)

* HIGH THIRD ORDER I.P.: +36 dBM (TYP.)

* LOW NOISE FIGURE: 4.3 dB (TYP.)

* WIDE POWER SUPPLY RANGE: +5 to +15 VOLTS Description The A59 RF amplifier is a discrete hybrid design, which uses thin film

A59 General Description

The A59 RF amplifier is a discrete hybrid design, which uses thin film manufacturing processes for accurate performance and high reliability. This single stage bipolar transistor feedback amplifier design displays impressive performance over a broadband frequency range. An active DC biasing network .

A59 Datasheet (611.53 KB)

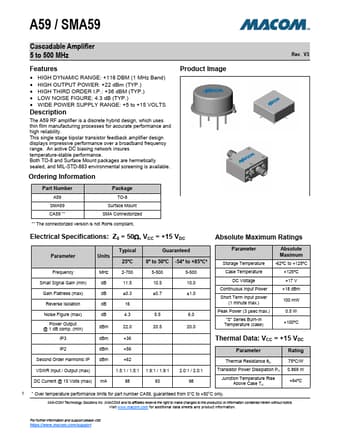

Preview of A59 PDF

Datasheet Details

Part number:

A59

Manufacturer:

MA-COM

File Size:

611.53 KB

Description:

Cascadable amplifier.
